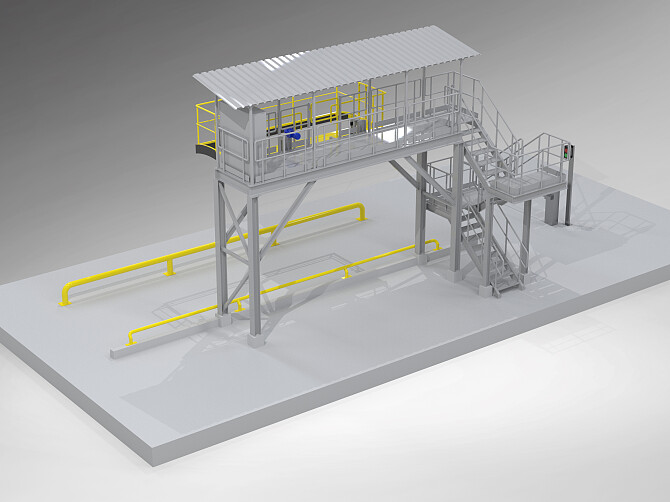

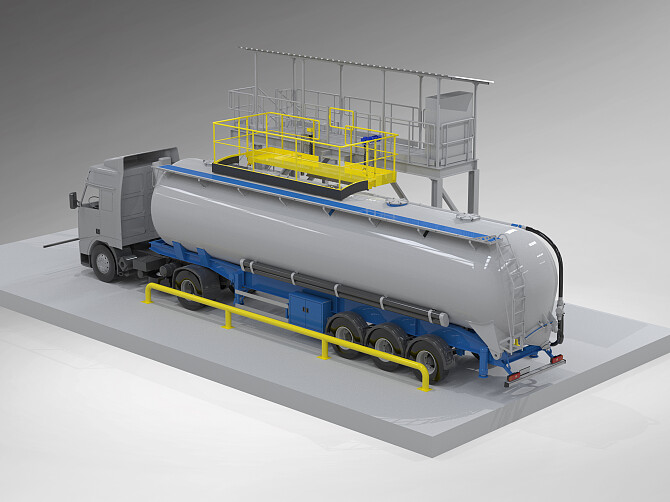

Automated installation for collecting samples of materials from road tankers, aimed at ensuring the safety of the tanker driver, as well as efficient sampling of loads in the form of loose, semi-liquid and liquid products.
Technical parameters of the terminal:
- the construction area and the usable area of the installation is 18 m2,
- equipped with grounding, lightning protection and fire protection,
- anti-corrosion protection of steel structures and welds by painting with epoxy primer and specialist anti-corrosion paint coatings in class C3-C5,
- movable platform secured with a gate, which can be opened only when the tanker truck is parked at the station, the operating range of the movable platform is ~ 3700 - 4300 mm, and the permissible load is ~ 580 kg,
- roofed and illuminated, has a traffic light / semaphore informing the driver about the possibility of entering the station, and two metal bumpers, guiding and facilitating parking the tank in the right place,
- CE certification and marking.
