Fluidization Coating Machine

Company: Changsha JSTARK Industrial Technology Co.,Ltd
Stand: A49

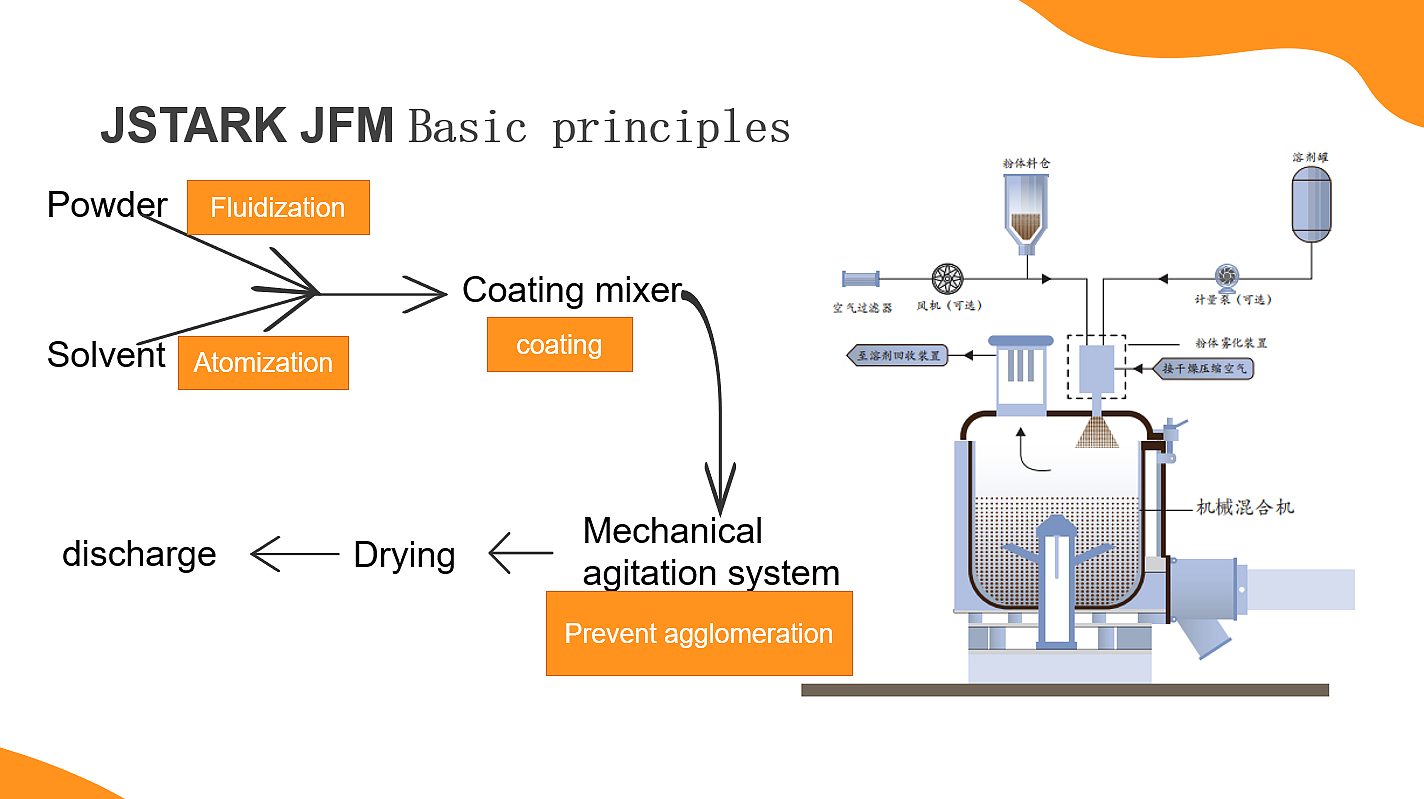

Basic principles

(1) After the powder and the solvent have each been thoroughly dispersed with compressed air, they are fed into a mixer for coating modification;

(2) The coated material is transferred to a mechanical agitator, where it undergoes turbulent dispersion and heat-drying;

(3) The mechanical agitation system incorporates an external circulation device that rapidly dries the powder and ensures thorough dispersion during operation.

JSTARK COATING 11.jpg [11.94 KB]

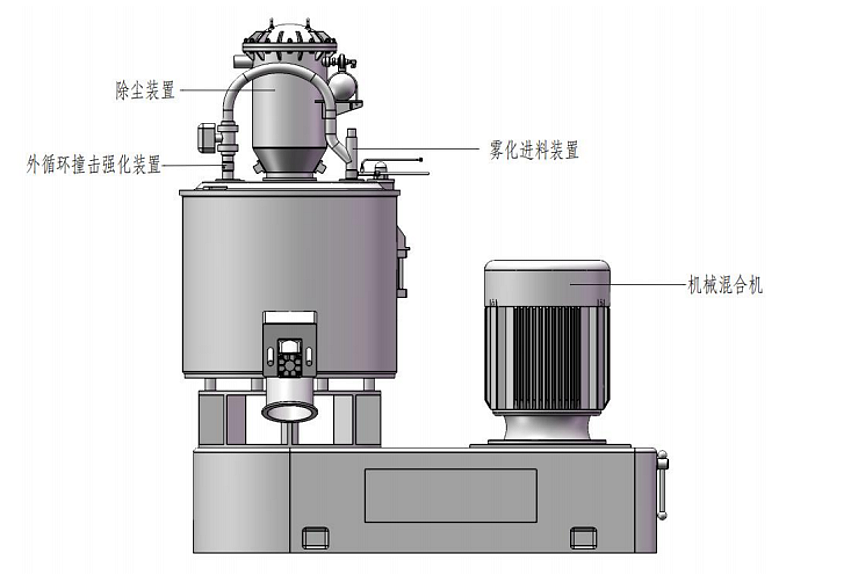

jstark coating 2.png [186.92 KB]

Fluidization Coating equipment JFM - Solvent–Powder Mixing

JSTARK JFM Fluidization Coating equipment is suitable for applying surface-coating solutions to powder materials. It delivers excellent dispersion, effectively preventing agglomeration, and requires only a small amount of solvent, thereby reducing consumption.



JSTARK COATING 3.PNG [152.06 KB]

Technical Advantages

1. Automated continuous material feeding - supports continuous automatic feeding, enabling continuous production.

2. Better coating performance and high efficiency - the powder and solvent are thoroughly dispersed by compressed air, achieving excellent coating; low solvent consumption and a short powder drying time.

3. Rapid drying - equipped with an external airflow recirculation dispersion system for rapid drying and reduced agglomeration.

4. Energy saving and environmental protection



JSTARK JFM specification sheet

Equipment parameters

Capacity (L)

10

20

50

100

300

500

Time per batch (min)

5

10

15

20

30

45

 Process temperature (℃)

Room temperature

—200℃

Room temperature

—200℃

Room temperature

—200℃

Room temperature

—200℃

Room temperature

—200℃

Room temperature

—200℃

Installed power (kW)

2.2

4

7.5

15

22

30

Air consumption (L/min)

10

12

15

18

20

25

Dimension (mm)

800×
400×1600

1200×
800×1600

1800×
1500×1800

2100×1800×2000

2400×2100×2200

2600×2200×2300

Range of processable materials

Particle diameter (μm)

1-1000

1-1000

1-1000

1-1000

1-1000

1-1000

Density (g/cm³)

0.1-3

0.1-3

0.1-3

0.1-3

0.1-3

0.1-3

Moisture content

≤1%

≤1%

≤1%

≤1%

≤1%

≤1%

Fluidity

Good

Good

Good

Good

Good

Good

Powder stickiness

No

No

No

No

No

No

Solvent viscosity (centipoise)

1-1000

1-1000

1-1000

1-1000

1-1000

1-1000

Processing performance

coating performance

Smooth

Smooth

Smooth

Smooth

Smooth

Smooth

Damage rate

Low

Low

Low

Low

Low

Low

Surface distribution uniformity

Uniformly distributed

Uniformly distributed

Uniformly distributed

Uniformly distributed

Uniformly distributed

Uniformly distributed

JSTARK JFM comparison to traditional coating machine



Traditional coating equipment

JFM coating machine

Principle

Mechanical stirring

Airflow mixing

Feeding

Direct feeding

Thorough dispersion (Atomization&Fluidization) feeding

Coating performance

Unsmoothed surface

Undamaged smooth surface

Surface damage

High-speed stirring causing surface damage

Airflow mixing and low-speed stirring, no surface damage

Feeding method

Manual feeding (or assisted by an additional vacuum feeder)

Automatic feeding, saving labor.

Equipment structure

Mechanical structure with insufficient sealing, leading to dust leakage

Non‑metallic tank structure with good sealing performance

Peripheral costs

Additional expenses are required for supporting systems such as cooling, dust-collection, and other auxiliary equipment.

Low, no other auxiliary equipment
