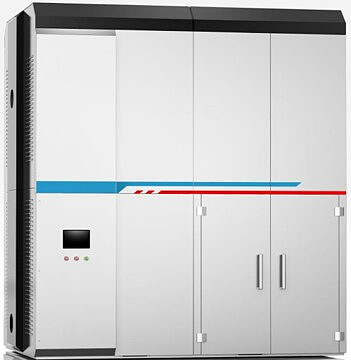

JSTARK JEM series airflow mixer is a precision mixer engineered for high‑efficiency, uniform mixing of two dry powder materials.
JSTARK JEM comparison to traditional coating machine
|
High-speed mixer (1000L) |
JEM 500L |
|
|
Effective capacity |
600L (filling degree 0.6) |
500L (filling degree 0.6~0.9) |
|
Efficiency |
350kg/h—600kg/h |
450kg/h—600kg/h |
|
Principle |
Mechanical stirring |
Airflow mixing |
|
Installed power |
110-200Kw (cooling and dust collection systems not included) |
30Kw (including feeding, mixing, discharging, and dust collection systems) |
|
Device function |
Only mixing |
Integrated, multifunctional system including feeding, mixing, discharging, and dust collection. |
|
Feeding method |
Manual feeding (or assisted by an additional vacuum feeder) |
Automatic feeding, saving labor. |
|
Equipment structure |
Low degree of integration, requires ancillary equipment such as a feeder, cooling system, and dust collection system. |
Highly integrated with vacuum feeding and dust collection; thermally self-balanced, no need for a additional cooling system. |
|
Peripheral costs |
Additional expenses are required for supporting systems such as cooling, dust-collection, and other auxiliary equipment. |
Low, no other auxiliary equipment |
